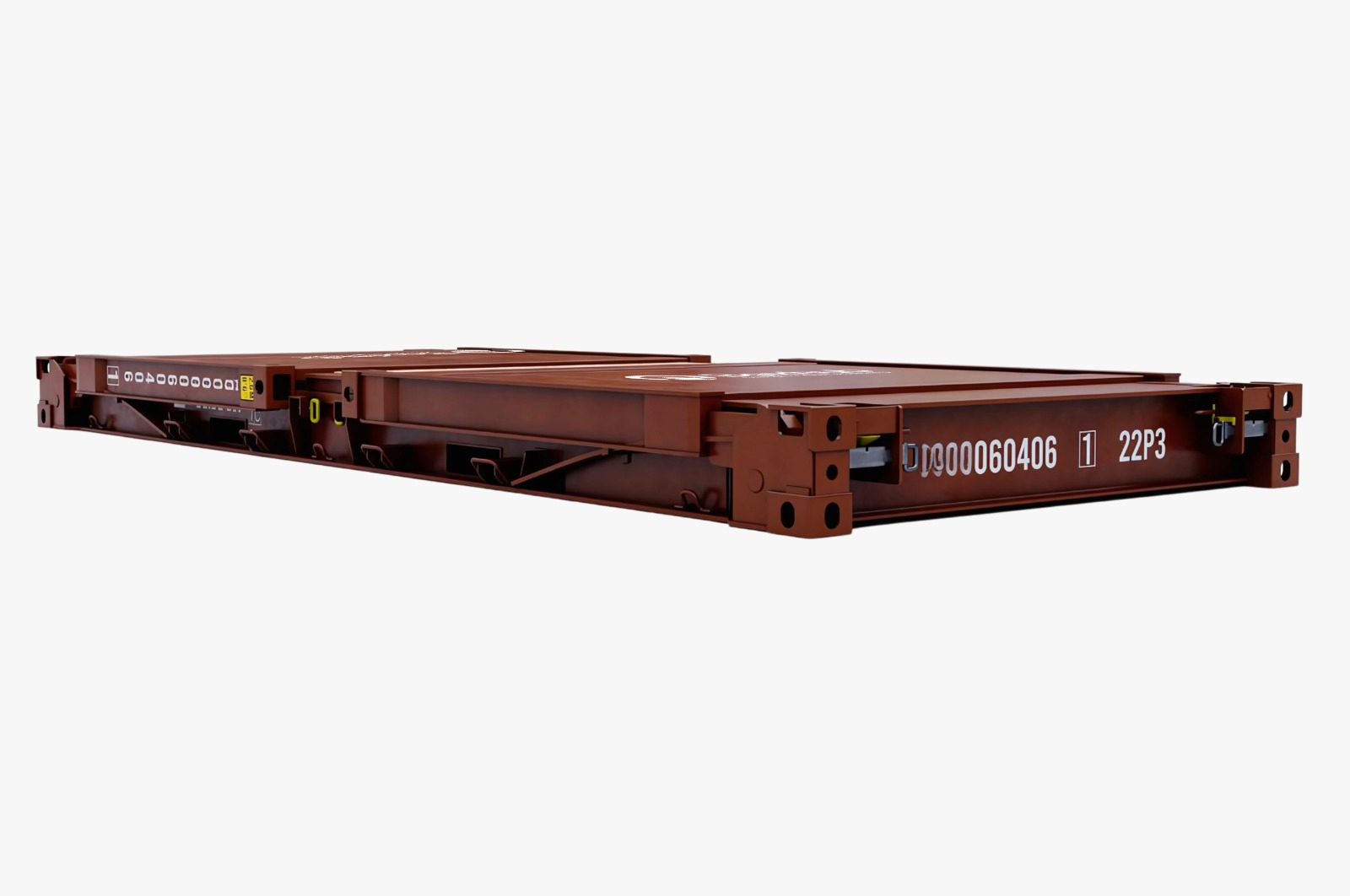

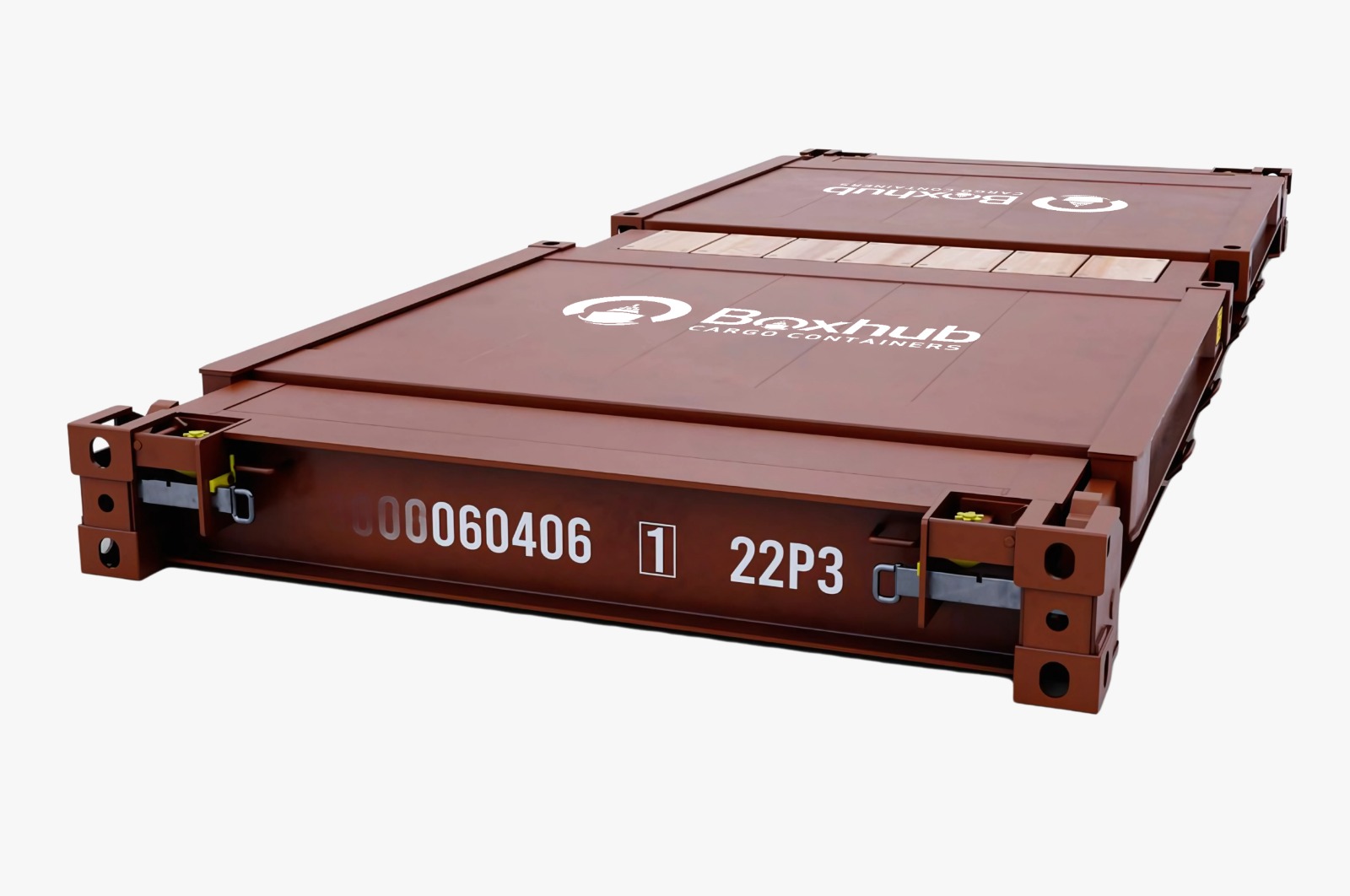

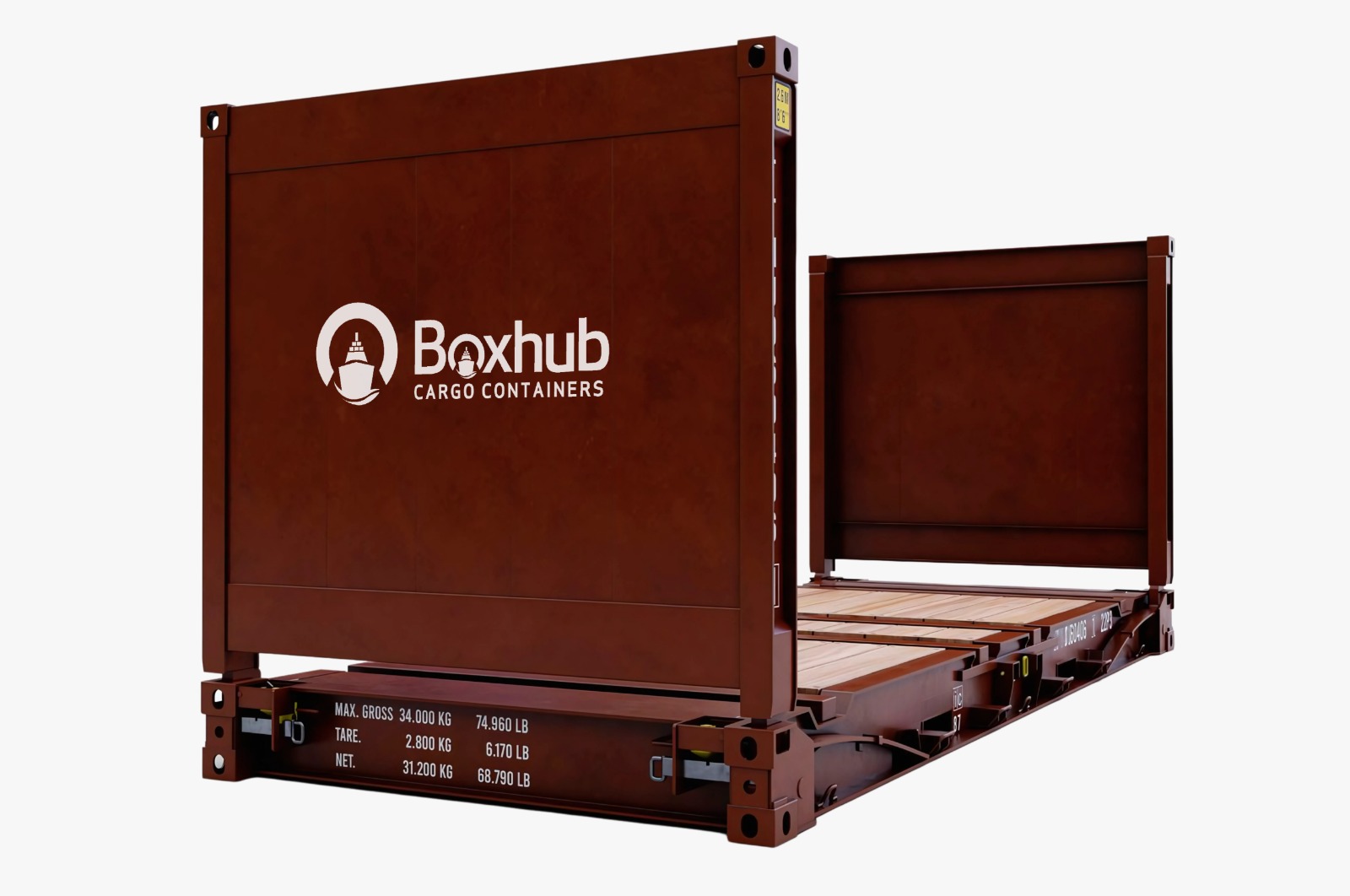

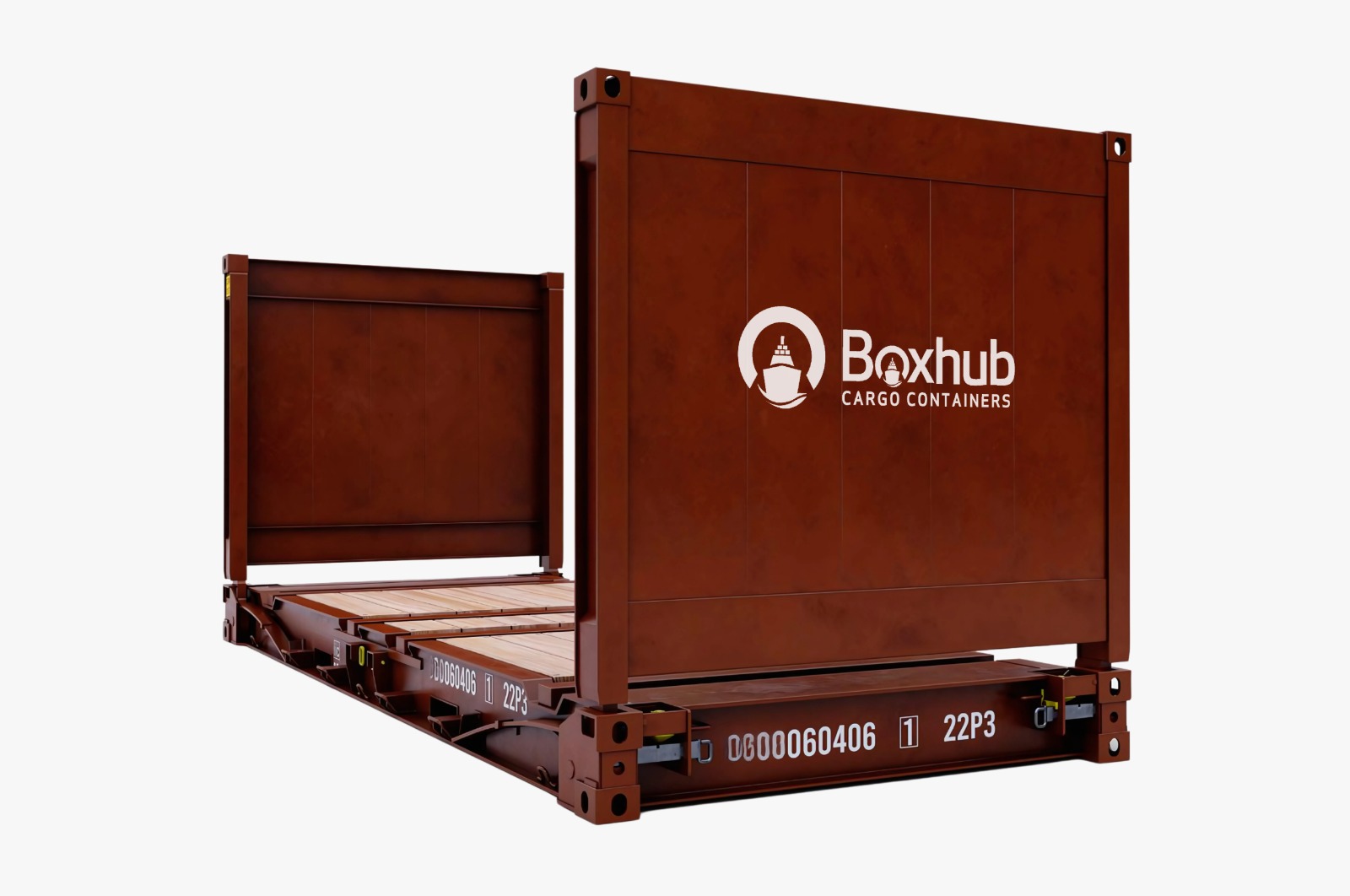

The 20ft Flat Rack Container is engineered to carry heavy, bulky, or irregularly shaped cargo that cannot fit into standard containers. Its open-frame design allows for top or side loading, accommodating large items such as machinery, steel coils, vehicles, or construction materials.
Available in Collapsible and Non-Collapsible types, the 20ft Flat Rack offers flexibility:
Constructed from high-strength steel, the 20ft Flat Rack ensures reliable performance under heavy-duty conditions—perfect for industrial and logistics applications.
| Specification | Metric (m, kg) | Imperial (ft, in, lbs) |
|---|---|---|
| External Dimensions | ||
| Length | 6.06 m | 20 ft 0 in |
| Width | 2.44 m | 8 ft 0 in |
| Height | 2.59 m | 8 ft 6 in |
| Internal Dimensions | ||
| Length | 5.94 m | 19 ft 6 in |
| Width | 2.40 m | 7 ft 10 in |
| Height | 2.23 m | 7 ft 4 in |
| Capacity | ||
| Maximum Payload | 42,000 kg | 92,594 lbs |
| Tare Weight | 3,000 kg | 6,614 lbs |
| Maximum Gross Weight | 45,000 kg | 99,208 lbs |
📞 Reach out to us today to secure the perfect Flat Rack Container for your specialized cargo needs!
Â

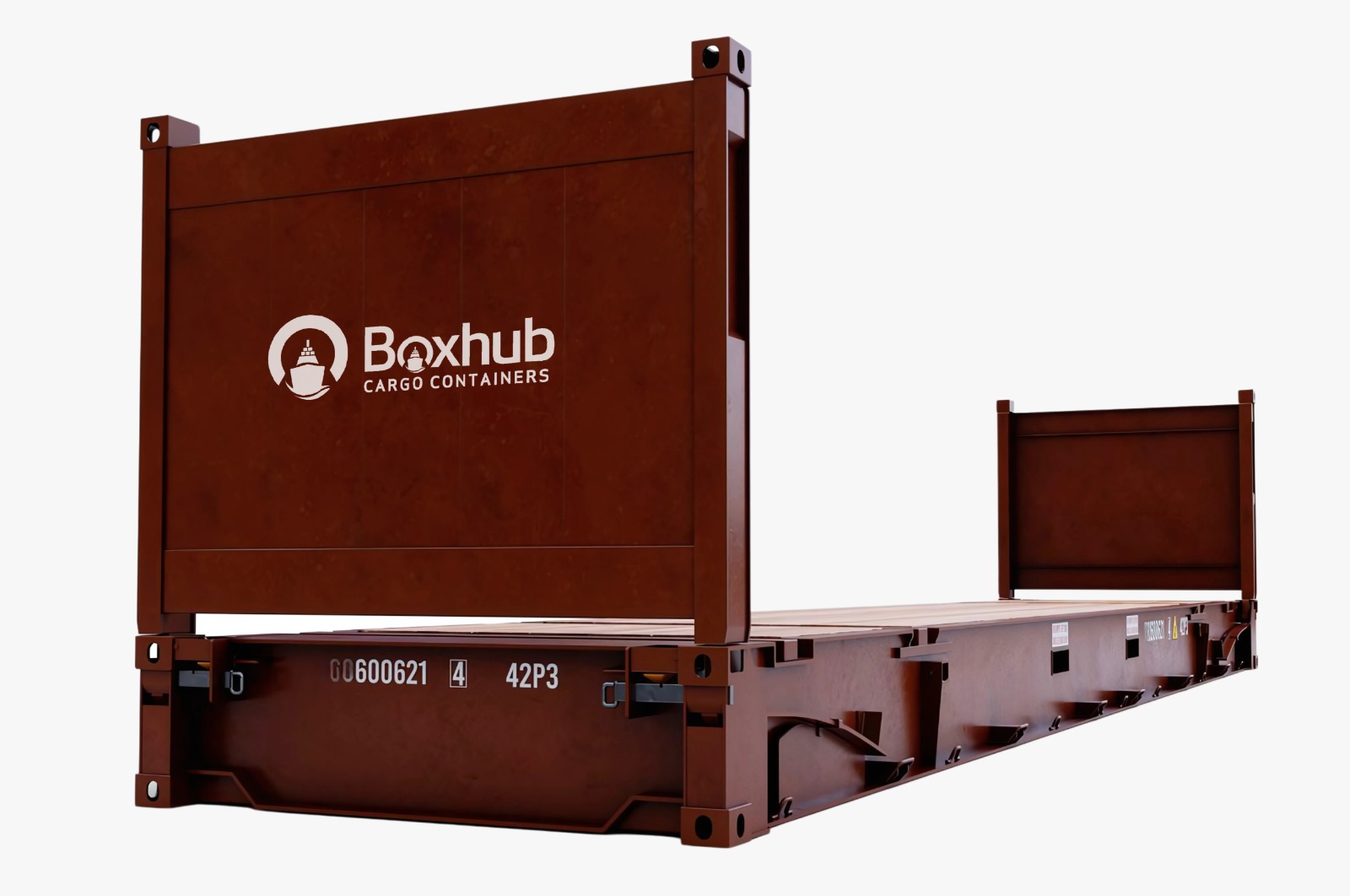

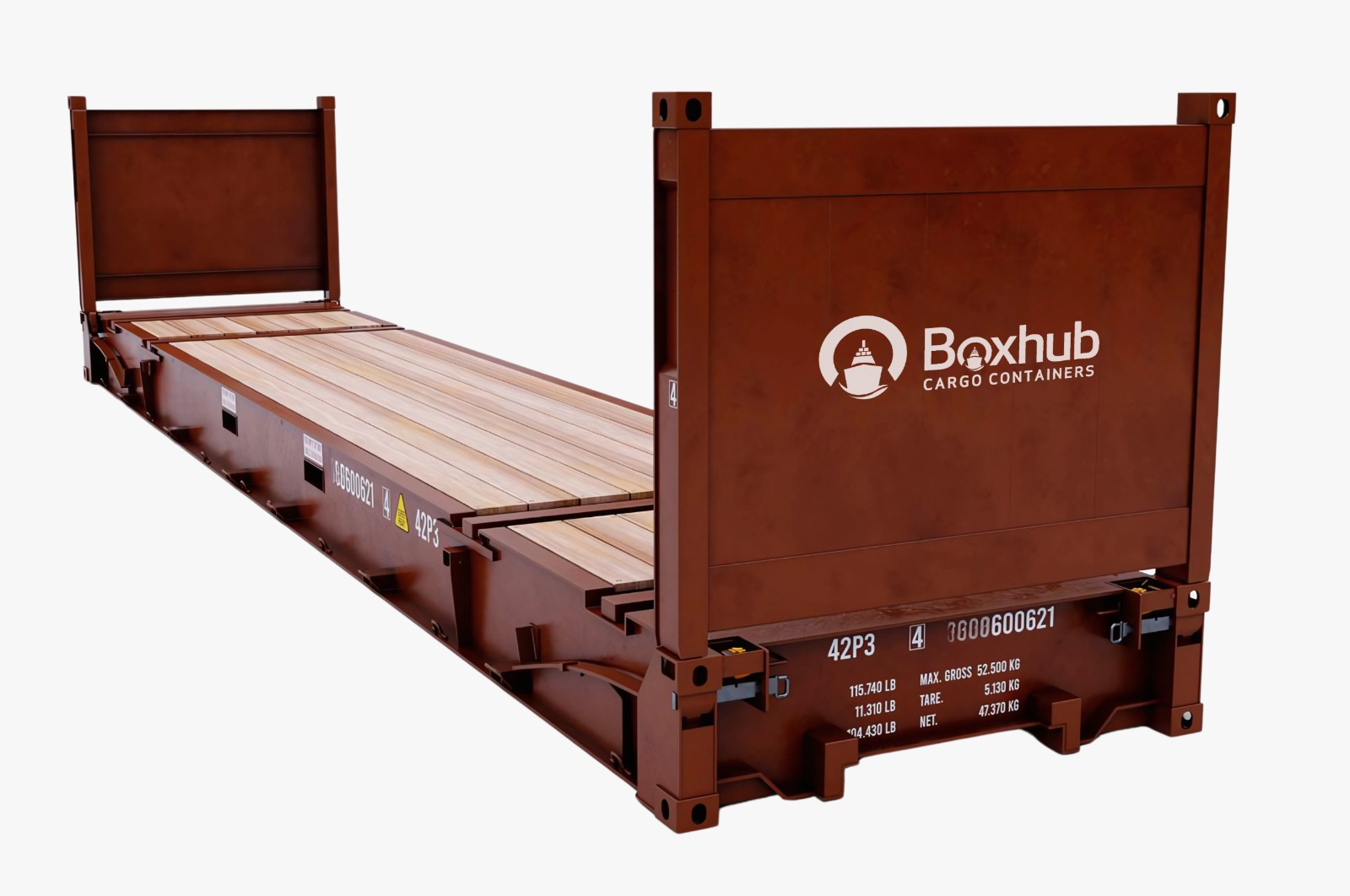

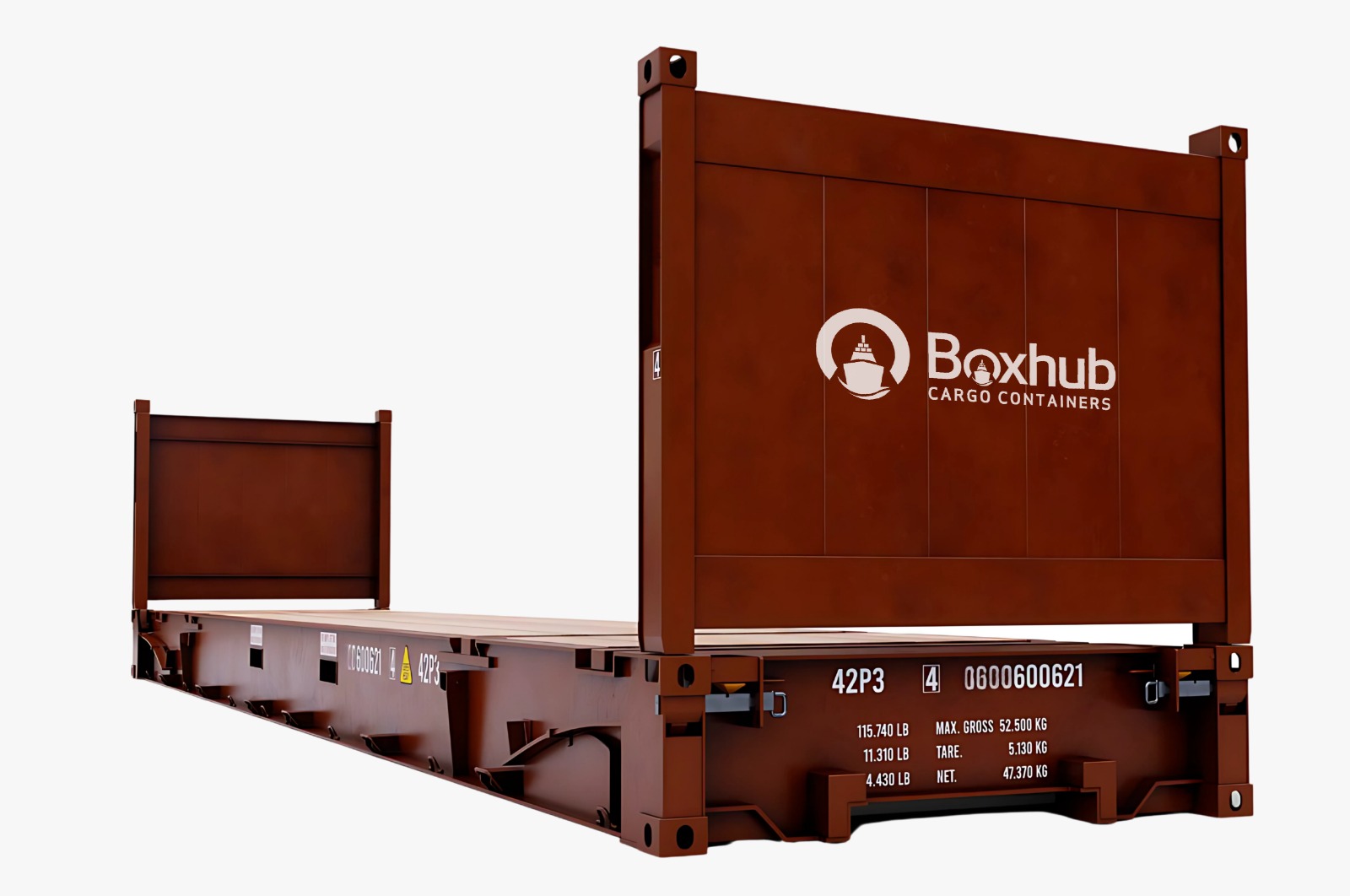

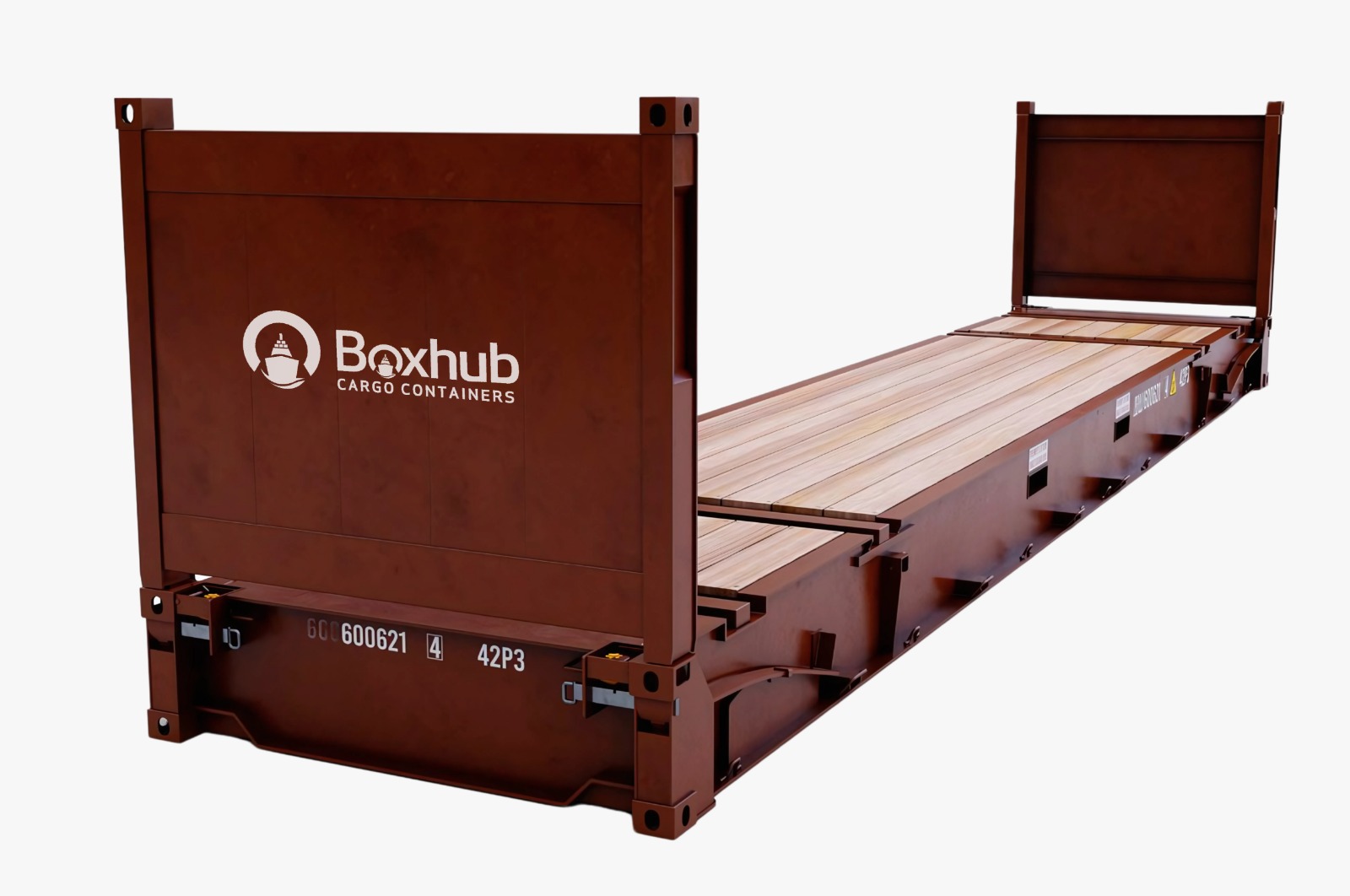

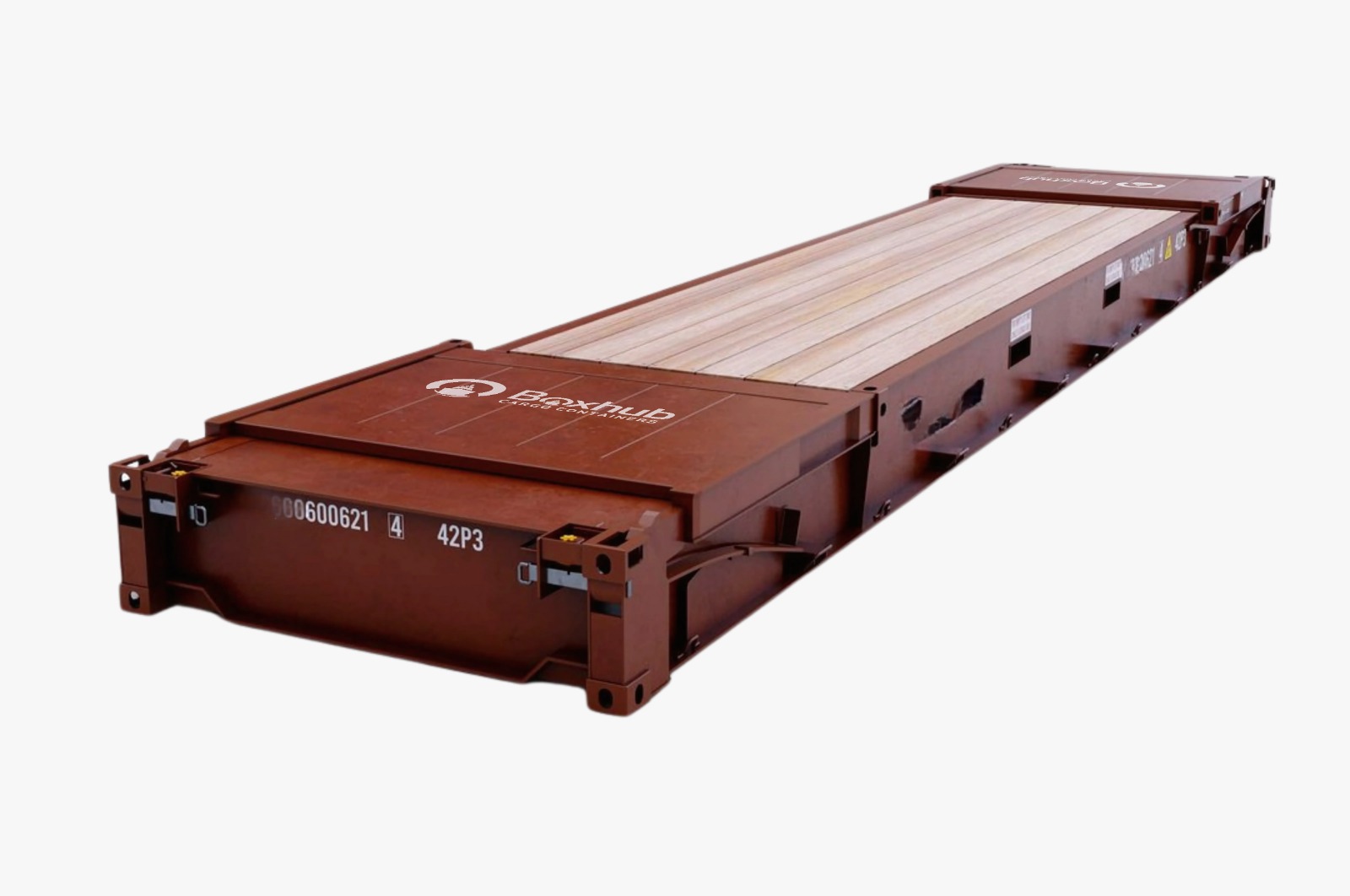

The 40ft Flat Rack Container is the go-to choice for large, heavy, or awkwardly shaped cargo that exceeds the dimensions of standard containers. Featuring no side walls or roof, it offers maximum loading flexibility and allows crane or forklift handling from multiple angles-ideal for transporting industrial machinery, large vehicles, pipes, and construction materials.
Built from reinforced, high-grade steel, this container ensures exceptional strength and stability for heavy-duty use. Available in both Collapsible and Non-Collapsible versions:
Whether you’re transporting massive industrial components or storing large equipment, the 40ft Flat Rack Container provides a dependable, efficient, and secure solution.
| Specification | Metric (m, kg) | Imperial (ft, in, lbs) |
|---|---|---|
| External Dimensions | ||
| Length | 12.19 m | 40 ft 0 in |
| Width | 2.44 m | 8 ft 0 in |
| Height | 2.59 m | 8 ft 6 in |
| Internal Dimensions | ||
| Length | 12.10 m | 39 ft 8 in |
| Width | 2.40 m | 7 ft 10 in |
| Height (Collapsible End) | Varies | Varies |
| Capacity | ||
| Maximum Payload | 47,370 kg | 104,420 lbs |
| Tare Weight | 5,130 kg | 11,310 lbs |
| Maximum Gross Weight | 52,500 kg | 115,730 lbs |
📞 Reach out to us today to secure the perfect Flat Rack Container for your specialized cargo needs!
